SPECIFICATIONS
for Click here to return to
product features. |
|
|
SPECIFICATIONS for all TVL Series models are listed on
this page. |
| GENERAL MODEL SPECIFICATIONS | ||
|
VOLTAGE
|
115v/1ph/50-60cy
|
|
|
|
220v operation (except TVL-5)
|
|
|
INLET DIAMETER
|
1-1/2" OD
|
|
|
VACUUM
|
7.0" Hg
|
|
|
PULSE DURATION
|
150 milliseconds
|
|
|
PULSE CYCLE
|
1-10 seconds (adjustable)
|
|
|
AIR SERVICE
|
80 PSI required
|
|
|
|
||
|
MODEL #
|
TVL-3 (1)
|
TVL-5 (1)
|
TVL-4 (2)
|
|
|
VOLUME (cubic feet)
|
1/3
|
1/8
|
1/3
|
|
|
RESIN CAPACITY (lbs)
|
12
|
4.4
|
12
|
|
|
DISCHARGE DIAMETER
|
2"
|
2"
|
2"
|
|
|
TOTAL LOAD CYCLES (second)
|
18-45
|
2-10
|
18-45
|
|
|
DUMP CYCLE (second)
|
12-29
|
6-19
|
12-29
|
|
|
RATIO CYCLE (second)
|
n/a
|
n/a
|
3-15 (3)
|
|
|
COMPRESSED AIR VOLUME (CFM0
|
.2
|
.2
|
.2
|
|
|
AMPS
|
13
|
8
|
13
|
|
|
NOTES:
1. Non-proportioning loader. 2. Proportioning loader. 3. Adjustable from 0-999 seconds with digital programmable timer. |
||||
|

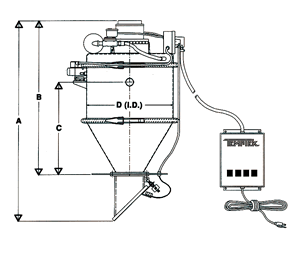

OVERALL DIMENSIONS and SHIPPING WEIGHT
|
|||||||
|
A
|
B
|
C
|
D
|
WEIGHT
|
 |
||
|
TVL-3
|
28"
|
21.6"
|
10.7"
|
10"
|
65
|
||
|
TVL-4
|
28"
|
21.6"
|
10.7"
|
10"
|
85
|
||
|
TVL-5
|
24.1"
|
15.4"
|
4.6"
|
6"
|
40
|
||
|
